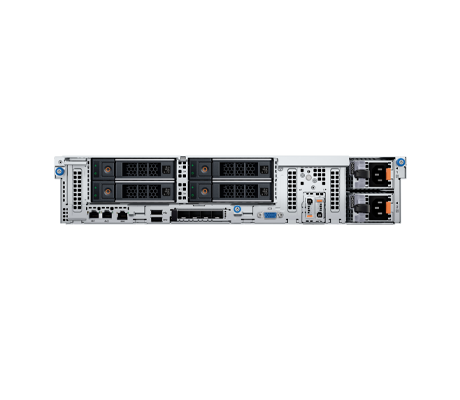

Dell PowerEdge R760xd2

Description

The Dell PowerEdge R760xd2 is a rack platform from Dell’s PowerEdge family
powered by Up to 2x 5th Generation Intel Xeon Scalable processors ; Up to 2x 4th Generation Intel Xeon Scalable processors ; Up to 64 cores per CPU ;…, 2 processor socket(s)
.

Key specifications

• Memory: Memory Capacity 16x DDR5 DIMM slots ; RDIMM Max: 1TB ; Up to 4800MT/s

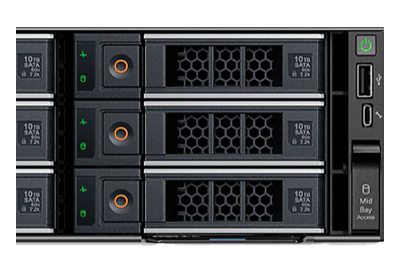

• Drive bays: Front Bays: Up to 12 x 3.5-inch SAS/SATA max 264 TB ; Mid Bays: Up to 12 x 3.5-inch SAS/SATA max 264 TB ; Rear Bays: Up to 4 x 3.5-inch SAS/SATA max 88 TB ; Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB ; Up to 2 x 2.5-inch NVMe max 15.36 TB
• Expansion: Up to 5x PCIe slots: Slot 1: 1 x16 Gen4 Low profile, Half length ; Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length ; Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length ; Slot 4: 1 x16 Gen4 Low profile, Half length ; Slot 5: 1 x16 Gen4 Low profile, Half length ; *Note: Slot 5 is dedicated for internal PERC card
• GPU options: Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
• Power: 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant ; 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant ; 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant ; 1100W LVDC –48 — –60 VDC, hot swap redundant ; 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• Dimensions: Enclosure ; Height: 86.8 mm (3.41 inches) ; Width: 481.6 mm (18.96 inches) ; Depth: 837 mm (32.95 inches)

Every configuration is built to order: choose your processor, memory, storage and accessories, and our team will confirm pricing and availability for Pakistan. Ace Communication supplies genuine Dell products with manufacturer warranty and local support from our Karachi office.

Price on request — contact us on WhatsApp or call 021-34999444 for the latest price and delivery time.
