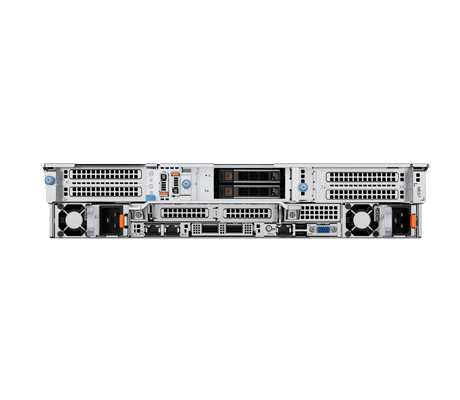

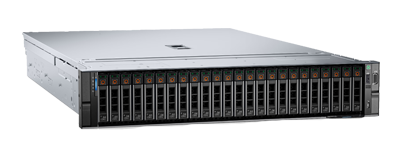

Dell PowerEdge R760

Description

The Dell PowerEdge R760 is a 2u rack platform from Dell’s PowerEdge family
powered by Up to 2x 5th Generation Intel Xeon Scalable processors ; Up to 2x 4th Generation Intel Xeon Scalable processors ; Up to 64 Cores per CPU ;…, 2 processor socket(s)
.

Key specifications

• Memory: 32x DDR5 DIMM slots ; Supports RDIMM 8TB max ; Speed: Up to 4800MT/s
• Drive bays: Front Bays Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB ; Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB ; Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB ; Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB ; Rear Bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB ; Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Expansion: Up to 8x PCIe Ports: Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length ; Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length ; Slot 3: 1 x16 Gen4 Low profile, Half length ; Slot 4: 1 x8 Gen4 Full height, Half length ; Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length ; Slot 6: 1 x16 Gen4 Low profile, Half length ; Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length ; Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length ; Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
• GPU options: Up to 2 x 350 W DW and 6 x 75 W SW
• Power: 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant ; 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant ; 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant ; 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant ; 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant ; 1100 W LVDC -48 — -60 VDC, hot swap redundant ; 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant ; 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• Dimensions: Height – 86.8 mm (3.41 inches) ; Width – 482 mm (18.97 inches) ; Depth – 772.13 mm (30.39 inches) with bezel ; Depth – 758.29 mm (29.85 inches) without bezel

Every configuration is built to order: choose your processor, memory, storage and accessories, and our team will confirm pricing and availability for Pakistan. Ace Communication supplies genuine Dell products with manufacturer warranty and local support from our Karachi office.

Price on request — contact us on WhatsApp or call 021-34999444 for the latest price and delivery time.
