Dell PowerEdge R230

Dell PowerEdge R230 Server

Brand: Dell
Name: Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server
Model: Dell PowerEdge R230 Server
Detail: Customizable: Intel® Xeon® E3-1225 v5, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive
Processor: Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W)
Memory: 16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM
Availability:  Yes
Condition: Refurbished
Shipping: All over  Pakistan
Price: Price on “WhatsApp” or “Call“.
Categories: , , , , , Tags: , ,
Add to quote

Description

Dell PowerEdge R230 Rack Server Overview:

Dell PowerEdge R230 Server provides consolidate data and drives applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server. This model is the Dell PowerEdge R430 server with Intel® Xeon® E3-1225 v5 processor, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive and a 3 Year Warranty.

Quick Specs:

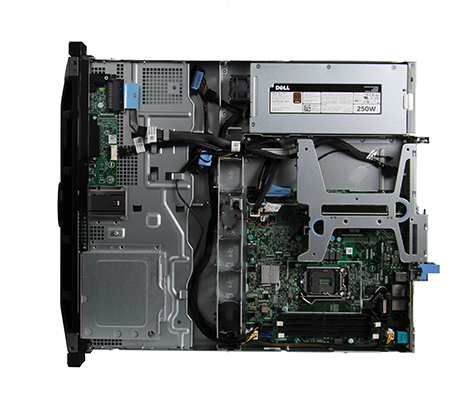

Figure 1 shows the appearance of the Dell PowerEdge R230 Server.

Dell-PowerEdge-R230-Server

Table 1 shows the quick spec.

Product Model Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server
Product Series Dell PowerEdge R230 Server
Customizable Intel® Xeon® E3-1225 v5, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive and a 3 Year Warranty
Base PowerEdge R230 Server
Processor Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W)
Operating System Windows Server® 2012R2,Foundation Ed,Factory Install,No MED
Memory 16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM
Hard Drive 1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive
RAID Controllers S130, H330, H730, H830
Chassis 2 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ Hot-Plug HDD 19.5″ 1U chassis
Dimensions Depth without bezel: 495.0 mm (19.5 in)
Depth with bezel: 551.3 mm (21.7 in)
Height: 42.8 mm (1.68 in)Width without rack latches: 434.0 mm (17.08 in)
Width with rack latches: 482.4 mm (18.99 in)

Product Details

Figure 2 shows the four 3.5-inch or 2.5-inch hot-swappable hard drive chassis of Dell PowerEdge R230 Server.

Dell-PowerEdge-R230-Server

Note:

① Power-on indicator, power button ⑥ USB management port/iDRAC Direct port
② NMI button and System identification button ⑦ USB connector
③ Video connector ⑧ Information tag
④ LCD menu buttons ⑨ Optical drive (optional)
⑤ LCD panel ⑩ Hard drives

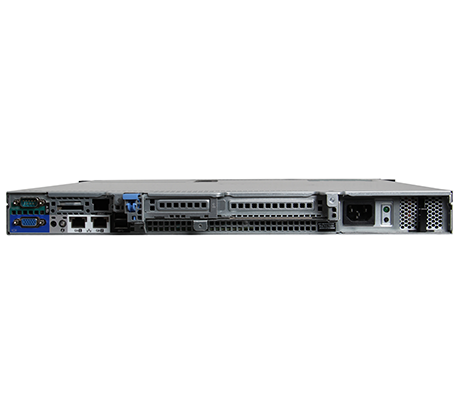

Figure 3 shows the back panel of the Dell PowerEdge R230 Server.

Dell-PowerEdge-R230-Server

Note:

① Serial connector ⑦ USB connectors (2)
② vFlash card slot (optional) ⑧ Ethernet connectors
③ iDRAC port (optional) ⑨ System identification connector
④ PCIe expansion card slot (x8 slot, low profile) ⑩ System identification button
⑤ PCIe expansion card slot (x16 slot, full height) ⑪ Video connector
⑥ Power supply unit (PSU)

Compare to Similar Item

Table 2 shows the comparison.

Product Model

Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server

Dell PowerEdge R230 Xeon E3-1240 v5 16GB 2TB SATA Rack Server

Product Series

Dell PowerEdge R230 Server

Dell PowerEdge R230 Server

Processor

Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W)

Intel Xeon E3-1240L v5 2.1GHz, 8M cache, 4C/8T, turbo (25W)

Operating System

Windows Server® 2012R2,Foundation Ed,Factory Install,No MED

Windows Server® 2012R2,Foundation Ed,Factory Install,No MED

Memory

16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM

16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM

Hard Drive

1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive

2TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive

Dell Server Configuration

Table 3 shows the Dell R230 Server Configuration. You can contact us to order a R230 server according to this guide.

Model

PowerEdge R230

Description

Consolidate data and drive applications faster with the powerful, efficient, and versatile PowerEdge R230 1-socket, 1U entry rack server

Processor

1 processor from the following product families:

Intel® Xeon® processor E3-1200 v6 product family

Intel Pentium®

Core i3®

Celeron®

Memory

Architecture: Up to 2400MT/s DDR4 DIMMs

Memory Type: UDIMMs

Memory Module Sockets: 4

Maximum RAM: Up to 64GB

PCI Slots

2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0)

Network Controller

2 X 1GbE

Storage

–

Get more information

Do you have any questions about the Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server?

Contact us now via “WhatsApp” or acecommunication@gmail.com.

Dell PowerEdge R230 Rack Server Specification

Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server Specification
Product Series Dell PowerEdge R230 Server
Model pe_r230_1346_b
Customizable Intel® Xeon® E3-1225 v5, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive and a 3 Year Warranty
Base PowerEdge R230 Server
Processor Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W)
Operating System Windows Server® 2012R2, Foundation Ed, Factory Install, No MED
Memory 16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM

Hard Drive

 1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive
Warranty 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site
Chipset Intel C236
Embedded Hypervisor (Optional) Hypervisor Support

Microsoft Windows Server with Hyper-V®
VMware® vSphere® ESXi®
Storage  –
Drive Bays 2 x 3.5″ cabled HDD
4 x 3.5″ cabled HDD
4 x 3.5″ hot swap or 2.5″ hot swap in hybrid drive carrier
Slots 2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0)

RAID Controllers

 S130, H330, H730, H830
Network Controller Broadcom® BCM5720
Communications 2 x 1GbE LOM
Power 250W cabled PSU
Chassis 2 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ Hot-Plug HDD 19.5″ 1U chassis
Management
  • Systems management:
    IPMI 2.0 compliant
    Dell OpenManage Essentials
    Dell OpenManage Mobile
    Dell OpenManage Power CenterDell OpenManage Integrations:
    Dell OpenManage Integration Suite for Microsoft System Center
    Dell OpenManage Integration for VMware vCenter™Dell OpenManage Connections:
    HP Operations Manager, IBM Tivoli® Netcool® and CA
    Network and Systems Management
    Dell OpenManage Plug-in for Oracle® Database ManagerRemote management:
    iDRAC8 with Lifecycle Controller, iDRAC8 Express (default),
    iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade)
Device Access 5 Total USB:
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
Internal: 1 x USB 3.0 port
Rack Support ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks.
Dimensions Depth without bezel: 495.0 mm (19.5 in)
Depth with bezel: 551.3 mm (21.7 in)
Height: 42.8 mm (1.68 in)Width without rack latches: 434.0 mm (17.08 in)
Width with rack latches: 482.4 mm (18.99 in)
