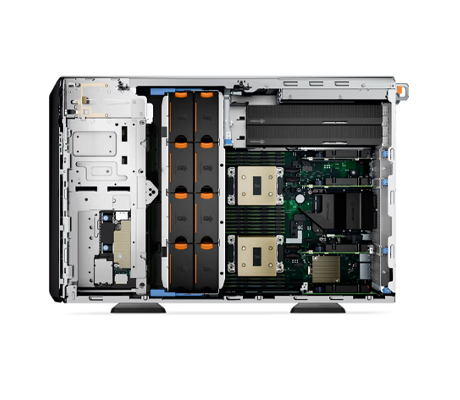

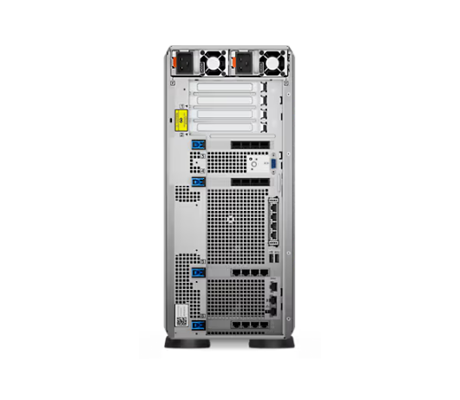

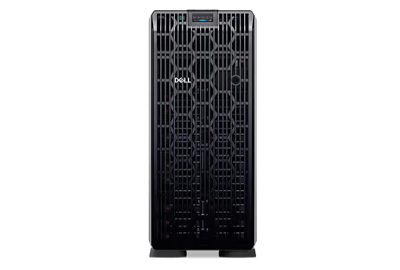

Dell EMC PowerEdge T560

Description

The Dell EMC PowerEdge T560 is a tower platform from Dell’s PowerEdge family
powered by Up to two 4th Generation Intel Xeon Scalable processor, with up to 32 cores per processor and optional Intel QuickAssist Technology, 2 processor socket(s)
.

Key specifications

• Memory: 16x DDR4 DIMM slots ; Supports RDIMM 1TB max ; Speed: Up to 4800MT/s
• Drive bays: Front bays: Up to 12 x 3.5-inch SAS/SATA HDD drives ; Up to 8 x 3.5-inch SAS/SATA HDD drives ; Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives ; Up to 8 x 2.5-inch SAS/SATA HDD drives ; Up to 16 x 2.5-inch SAS/SATA HDD drives ; Up to 24 x 2.5-inch SAS/SATA HDD drives
• Expansion: Up to six PCIe slots: Slot 1: x16 Gen5 Full height, Full length ; Slot 2: x16 Gen5 Full height, Full length ; Slot 3: x16 Gen4 Full height, Half length ; Slot 4: x16 Gen4 Full height, Half length ; Slot 5: x16 (x8 lanes) Gen4 Full height, Half length ; Slot 6: x16 Gen4 Full height, Half length
• Power: 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant ; 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant ; 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant ; 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant ; 1100 LVDC -48 — (-60) VDC, hot swap redundant ; 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant ; 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant ; 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant
• Dimensions: Height — 464.0 mm (18.26 inches) (with feet) ; Height — 508.8 mm (20.03 inches) (with caster wheels) ; Height — 446.0 mm (17.60 inches) (without feet); Width — 200.0 mm (7.87 inches); Depth — 678.2 mm (26.70 inches) (with bezel) ; Depth — 660.6 mm (26 inches) (without bezel)

Every configuration is built to order: choose your processor, memory, storage and accessories, and our team will confirm pricing and availability for Pakistan. Ace Communication supplies genuine Dell products with manufacturer warranty and local support from our Karachi office.

Price on request — contact us on WhatsApp or call 021-34999444 for the latest price and delivery time.
