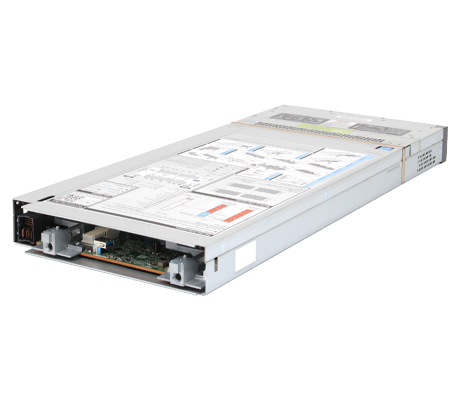

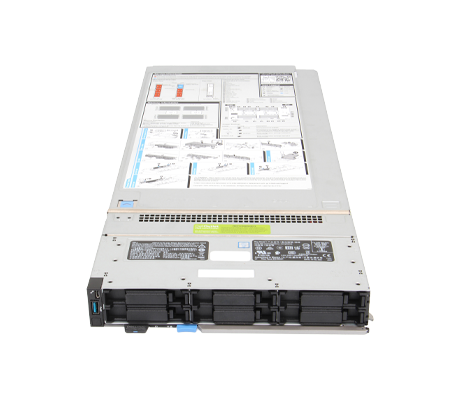

Dell EMC PowerEdge MX740C
Description
The Dell EMC PowerEdge MX740C is a blade platform from Dell’s PowerEdge family
powered by 2nd Generation Intel Xeon Scalable Processors ; Up to 28 cores per processor, 2 processor socket(s)
.
Key specifications
- Memory: 24x DDR4 DIMM slots ; DIMM Type: RDIMM, NVDIMM-N, LRDIMM, DCPMM ; Transfer speed: 2933 MT/s, 2666 MT/s, 2400 MT/s ; Maximum memory configuration: RDIMM 1.5TB ; LRDIMM 3TB ; NVDIMM-N 192GB ; DCPMM 6.144TB

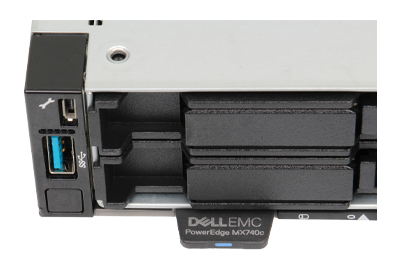

- Drive bays: Front Bays Up to 6x 2.5” Hot-swap SATA/SAS HDDs or SSDs, or NVMe PCIe SSD Drives
- Expansion: Up to 48 PCIe Gen3 lanes per CPU with x16, x8 and x4 Bifurcation support ; Two PCIe 3.0 x16 Mezzanine slots (Fabrics A and B) ; One PCIe 3.0 x16 Mini-mezzanine slot (Fabric C)
- Power: MX7000 chassis: up to 6x 3000W; PSU and grid redundancy support
- Dimensions: Length: 620.35mm (24.2 inches) ; Width: 250.2mm (9.8 inches) ; Depth: 42.14mm (1.65 inches) ; Weight: 9.5 kg (20.94 lbs)
Every configuration is built to order: choose your processor, memory, storage and accessories, and our team will confirm pricing and availability for Pakistan. Ace Communication supplies genuine Dell products with manufacturer warranty and local support from our Karachi office.
Price on request — contact us on WhatsApp or call 021-34999444 for the latest price and delivery time.
Additional information
| Product Solution | blade-servers |
|---|---|
| Form Factor | blade-module |
| CPU Manufacturer | Intel |
| CPU Type | xeon-scalable-1st-2nd-gen |
| Generation | 14G |
| Processor | Base — 2nd Generation Intel Xeon Scalable Processors ; Up to 28…, Performance — Xeon Scalable 1st & 2nd Gen (upgrade), Max — Xeon Scalable 1st & 2nd Gen (top bin) |
| Memory | 32GB, 64GB, 128GB, 256GB |
| Storage | NVMe SSD — 480GB, NVMe SSD — 960GB, NVMe SSD — 1.92TB, NVMe SSD — 3.84TB |
| Accessories | Rail kit, Redundant power supply, iDRAC Enterprise license, Extended warranty, 10GbE / 25GbE network adapter, GPU kit (where supported) |
